A disc that fits the grinder is not automatically the right disc for the job. Choosing between abrasive disc types affects cutting speed, finish quality, disc life and, most importantly, safe operation. A thin cutting disc may slice through steel quickly but will not tolerate side pressure. A grinding disc will remove weld material, but it is the wrong choice when a clean, controlled finish is required.
For workshop, fabrication, site maintenance and serious DIY work, the best result comes from matching the disc to the material, the tool and the task. The label tells you most of what you need to know, provided you know what to look for.

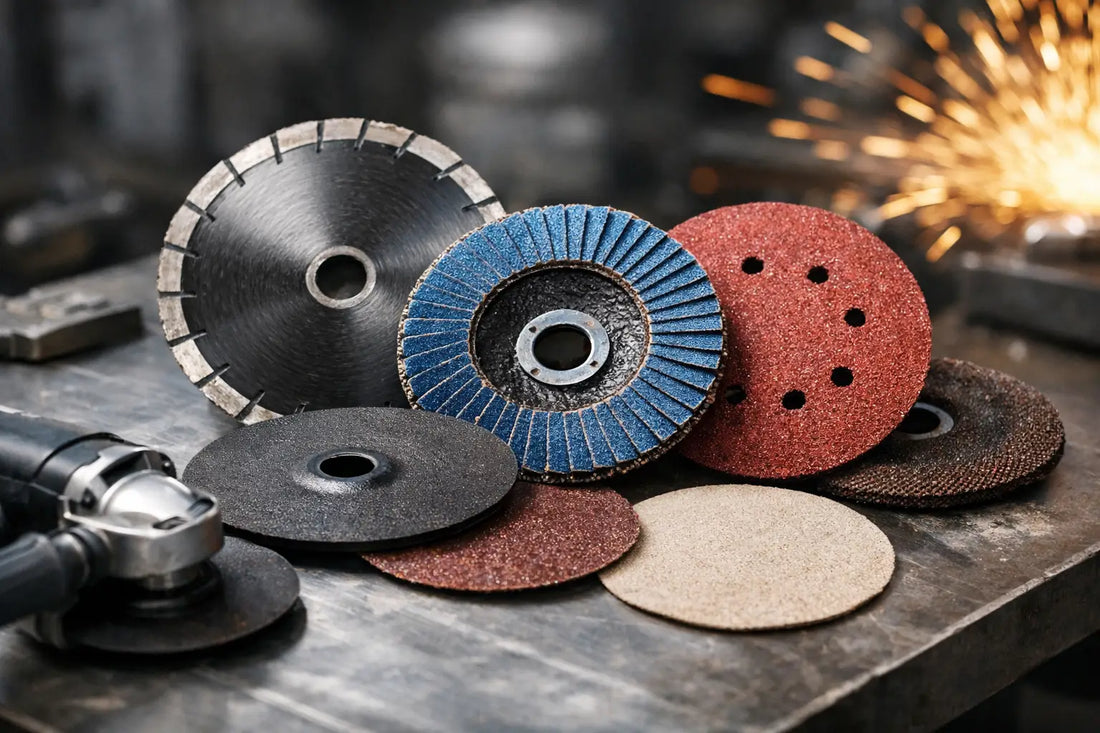

Abrasive disc types at a glance
Most abrasive discs fall into two groups. Bonded abrasive discs use grains held together in a hard resin bond. They are made for cutting, grinding and removing material. Coated abrasive discs have grains fixed to a backing such as fibre, cloth or paper. They are generally used for sanding, blending and surface preparation.
The grain also matters. Aluminium oxide is the common all-round choice for mild steel, timber and general metalwork. Zirconia alumina is tougher and tends to last longer under heavy pressure, making it useful for steel fabrication. Ceramic grain cuts aggressively and is suited to demanding grinding or sanding work, particularly on hard metals. Silicon carbide is sharp and brittle, so it is often used on stone, masonry, glass, aluminium and non-ferrous materials.
The following disc types cover the jobs most commonly found in a workshop, on a building site or during equipment repair.
Thin cutting discs
Thin cutting discs are bonded discs, typically 1 mm to 2.5 mm thick. They are used with angle grinders to cut steel bar, box section, pipe, sheet metal and, in suitable versions, stainless steel or stone.
A thinner disc produces a narrow kerf, wastes less material and usually cuts faster. The trade-off is lower resistance to twisting and side load. Keep the cut straight, let the disc do the work and do not use a cutting disc for grinding. For regular steel cutting, a 115 mm or 125 mm disc is convenient for general site work, while 230 mm discs give greater cutting depth where the grinder and guard are designed for them.
Check whether the disc is marked for steel, inox, aluminium or masonry. A disc intended for stainless steel should be free from iron, sulphur and chlorine contaminants. Cutting aluminium with a standard steel disc can cause loading, heat build-up and poor performance.
Depressed-centre grinding discs
Grinding discs are thicker than cutting discs, commonly around 6 mm, and are built to withstand face grinding. They are the practical choice for dressing welds, removing burrs, shaping edges and taking down excess metal on fabricated parts.
Their thicker construction makes them durable, but they remove material less precisely than a flap disc. Use one when speed and stock removal matter more than the final appearance. A grinding disc can leave a coarse surface, so it is often followed by a flap disc or fibre disc where a cleaner finish is needed.
For steelwork, aluminium oxide grinding discs are a dependable everyday option. When working on harder alloys or where the disc is being used continuously, a higher-performance zirconia or ceramic product may justify the extra cost through longer life and faster removal.
Flap discs
A flap disc combines overlapping abrasive cloth flaps with a backing plate. It grinds and finishes in one operation, making it a useful choice for weld blending, edge chamfering, rust removal and surface clean-up.
Flap discs are available in different grits. Coarse 36 or 40 grit discs remove welds and heavy scale efficiently. Mid-range 60 or 80 grit discs are suited to blending and general fabrication. Finer grades are better for refining a surface before painting or coating.
Backing shape changes how the disc works. A conical flap disc provides more aggressive grinding because the flaps meet the work at a more direct angle. A flat flap disc gives broader contact and a more even finish on flat surfaces. Neither is universally better - the right choice depends on whether removal rate or finish is the priority.
Fibre sanding discs
Fibre discs are resin-bonded abrasive discs with a vulcanised fibre backing. They require a compatible backing pad and are normally fitted to an angle grinder. They are a strong option for rapid weld removal, deburring, blending and preparing steel before coating.
Compared with flap discs, fibre discs can offer very fast material removal and are easy to change when used with the correct backing system. They are less forgiving on uneven surfaces, however, and the backing pad must be selected to suit the disc and application. A firm pad supports aggressive grinding; a more flexible pad is better for contour work and finishing.
Zirconia fibre discs are popular for steel because the grain fractures to expose fresh cutting edges during use. Ceramic fibre discs are suited to high-production metal removal, though they are usually unnecessary for occasional repair work.
Hook-and-loop and sanding discs
Hook-and-loop sanding discs are mainly used on random orbital sanders, while adhesive-backed discs are also common on dedicated sanding machines. These are the discs to choose for paint preparation, timber sanding, filler work and refining surfaces between coats.
Grit selection is central to the result. Start coarse only when there is material to remove, then work through the grades rather than trying to force a fine disc to remove heavy defects. For example, damaged painted metal may need 80 grit for initial preparation, 120 to 180 grit for smoothing, and a finer grade before primer or topcoat, depending on the paint system.
Dust extraction holes must align with the sander pad. Poor alignment reduces extraction, fills the disc with dust and shortens its working life. On timber, this also increases the chance of scratch marks and heat damage.
Surface conditioning and strip discs
Surface conditioning discs use open-web nylon material loaded with abrasive grain. They are designed to clean and blend rather than cut deeply. They work well for removing light rust, paint residue, oxidation and gasket material without substantially changing the shape of the base metal.
Strip discs, often sold for paint and rust removal, are more aggressive open-web products. They are useful for cleaning steel gates, brackets, machinery parts and awkward profiles where a wire brush may catch or a grinding disc would remove too much metal.
Neither type is intended for heavy weld removal or deep corrosion. Their value is control. If you need to preserve a surface while cleaning it, they are often a better choice than a hard grinding disc.
Diamond and masonry discs
Diamond cutting discs are not conventional abrasive grain discs, but they are commonly selected alongside them. They use diamond segments or a continuous diamond rim to cut concrete, brick, block, tile and stone.
A segmented blade clears debris quickly and is generally suited to faster cutting in concrete and masonry. A continuous-rim blade gives a cleaner cut in tiles and brittle materials but may cut more slowly. Always use a disc rated for the material being cut. A tile blade is not the best option for reinforced concrete, and a general masonry disc may chip a finished porcelain tile.
How to choose the right abrasive disc
Start with the material. Steel, stainless steel, aluminium, concrete, timber and paint all need different abrasive properties. Then decide whether the job is cutting, heavy removal, weld blending, surface cleaning or fine sanding. This avoids the common mistake of choosing by diameter alone.
Before fitting any disc, check these five points:
- The disc diameter and bore match the tool and flange correctly.
- The maximum RPM marked on the disc is equal to or higher than the grinder's no-load speed.
- The disc is approved for the material and operation required.
- The guard, side handle and appropriate PPE are fitted and in good condition.
- The disc has no cracks, chips, moisture damage or passed expiry date.
Grit, pressure and working angle
A lower grit number means larger abrasive particles and a coarser finish. A 24 or 36 grit disc removes material quickly, while 80 grit leaves a more controlled surface. Fine grits are for final preparation, not for speeding through a heavy weld.
Pressure should be steady rather than excessive. Pressing too hard creates heat, wears the grain prematurely and can glaze the disc. With flap and fibre discs, use the working angle recommended for the product. Too shallow an angle may polish rather than cut; too steep an angle can gouge the workpiece and wear one edge of the disc.
The cheapest disc is not always the best value. For a short, occasional job, a standard aluminium oxide disc may be entirely suitable. For repeated fabrication work or regular maintenance, a longer-lasting zirconia or ceramic disc can reduce changeovers and improve output. DYNATEX customers working across site repairs, metalwork and general maintenance will usually benefit from keeping more than one disc type in the workshop rather than asking one disc to do every job.
Choose the disc for the finish you need, not just the material you can remove. That small decision saves consumables, reduces rework and leaves the job ready for its next stage.
