Temporary power is only as dependable as the connections carrying it. The right site electrical plugs and sockets keep tools running, lighting supplied and extension leads correctly matched, while helping to reduce avoidable damage, downtime and electrical risk. On a busy building site, in a workshop yard or during property maintenance work, selecting the correct fitting is not a matter of choosing what happens to connect.
Industrial plugs and sockets are built for harder use than domestic accessories, but they still need to suit the voltage, current draw, environment and equipment involved. A 16A connector may be perfectly adequate for one item of equipment yet unsuitable for a high-demand heater, distribution board or group of tools. Getting those details right before ordering saves replacing scorched plugs, tripping supplies or arriving on site without a usable connection.
Start with the supply voltage

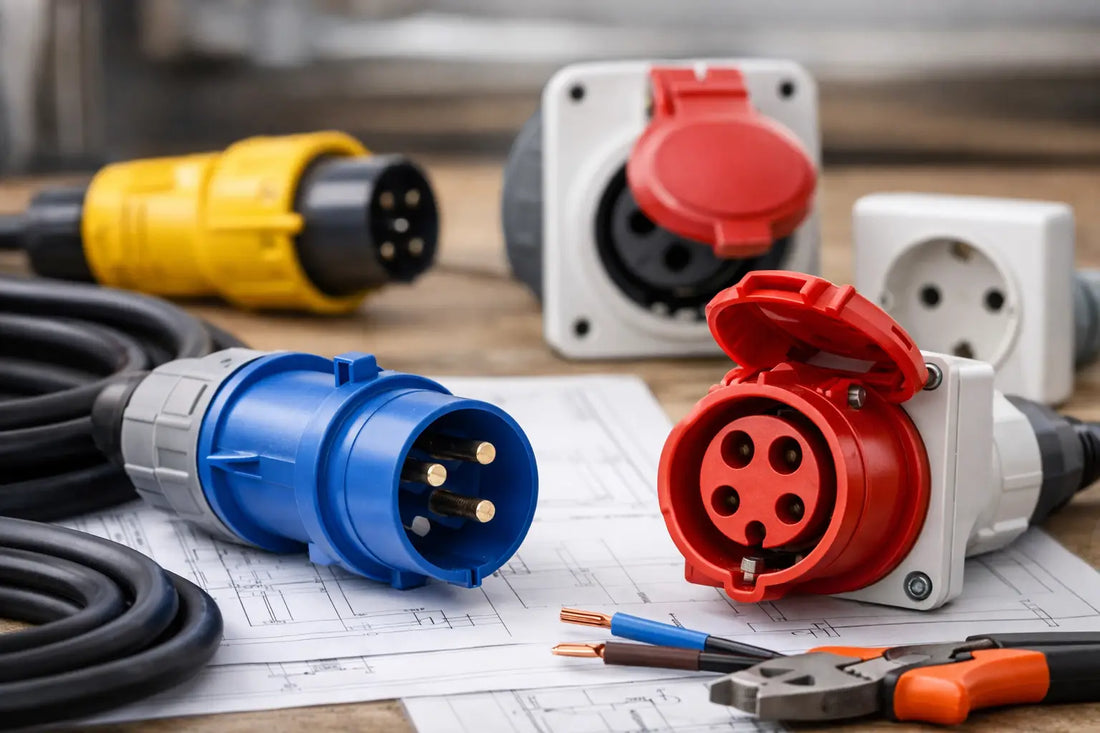

The first check is the supply you are connecting to. On UK sites, 110V equipment is widely used because a centre-tapped 110V transformer provides 55V to earth, reducing the severity of electric shock compared with standard mains voltage. Yellow industrial plugs and sockets are commonly associated with 110V site power and are a familiar choice for compatible transformers, extension leads and portable tools.
Blue fittings are generally used for 230V single-phase supplies. These are common for generators, workshops, caravan-style hook-ups and equipment designed to run from a standard mains-type supply. Red connectors are typically used for 400V three-phase power, often required for heavier machinery, motors and certain distribution equipment.
Colour is a useful visual guide, not a complete specification. Always confirm the voltage marking, current rating, number of pins and clock position on the plug, socket and equipment data plate. Connectors that look similar are not necessarily compatible, and forcing an incorrect fitting is both unsafe and likely to damage it.
Match the current rating to the job
The current rating determines how much electrical load a plug, socket, coupler or extension lead can safely carry. The most common industrial ratings for portable site use are 16A and 32A, with larger ratings available for distribution and higher-demand equipment.
A 16A 110V lead is a practical everyday choice for many hand-held power tools and task lighting. A 32A fitting provides greater capacity but is not automatically the better option. It needs to match the outlet, cable size, protective device and expected load. Fitting a higher-rated plug to a lead with unsuitable cable does not increase what the lead can safely carry.
For three-phase equipment, current rating matters alongside phase arrangement and pin configuration. A three-phase plug may have three live pins, an earth and, where needed, a neutral. Check the equipment requirements rather than assuming every red connector is interchangeable.
When working out load, use the equipment manufacturer's rated power and allow for starting current where motors, compressors, pumps or larger machinery are involved. A circuit that holds under a light running load may still trip when a motor starts. If there is uncertainty, a qualified electrician should assess the installation and protection arrangement.
Do not overlook the cable
A properly matched plug and socket will not compensate for a poor extension lead. Cable length, conductor size and working conditions all affect performance. Long runs can introduce voltage drop, particularly on 110V systems, leaving tools underpowered and motors working harder than they should.
For site leads, tough rubber cable is often preferred because it is flexible and designed to cope better with knocks, movement and outdoor use than lighter-duty cable. Inspect cable before use for cuts, crushed sections, exposed conductors, loose glands and signs of overheating around either end. A plug that feels hot in service needs attention, not another shift of use.
Choose protection for the environment
Site electrical equipment is regularly exposed to dust, rain, mud, wash-down, vehicle movement and rough handling. The IP rating tells you how well an enclosure resists the entry of solids and water. It should be selected for the real environment, not the best-case conditions.
An IP44 plug or socket is protected against solid objects over 1mm and water splashing from any direction. It is a common choice for general outdoor and site use where equipment is not submerged or subjected to powerful water jets. IP67 equipment offers substantially greater protection against dust and temporary immersion, making it a stronger option for particularly wet, dirty or demanding locations.
Higher IP protection can mean a bulkier fitting and a higher purchase price. That is usually a sensible trade-off where connectors are regularly left outdoors, used around groundworks or exposed to cleaning. For dry internal work, an appropriately rated standard industrial fitting may be more practical and economical. The key is to keep caps closed when outlets are not in use and avoid leaving joined connections lying in standing water.
Understand plugs, sockets, couplers and interlocked outlets
The terms are often used loosely, but each part has a different job. A plug is fitted to the supply end of equipment or a lead. A socket outlet is fixed to a distribution board, wall box, transformer or generator. A trailing socket, also called a coupler, is fitted to the receiving end of an extension lead.
This matters when replacing damaged components. A plug and a trailing socket may share the same voltage and amp rating, but they are not substitutes for each other. Check whether you need a panel-mounted outlet, a surface-mounted socket, an in-line connector or a replacement plug before buying.
For three-phase and higher-load applications, interlocked sockets can provide additional control. Their design prevents the plug being inserted or removed while the switch is on, helping to reduce arcing and accidental disconnection under load. They are commonly used where machinery, temporary distribution or more controlled site power arrangements are involved.
Site electrical plugs and sockets: checks before use
A quick inspection is worthwhile at the start of each shift, especially for equipment shared between operatives or moved frequently around site. Look for cracked housings, bent or recessed pins, damaged locking rings, loose cable grips and missing protective caps. Check that plugs fully engage and that couplers lock securely where the design includes a retaining collar.
Never repair a damaged connector with tape, sealant or improvised fittings. Moisture and dirt can enter through even a small crack, while loose terminals create resistance and heat. Replacement plugs and sockets are relatively low-cost items compared with the cost of damaged tools, lost working time or an electrical incident.
RCD protection is also essential for temporary electrical systems where required. An RCD can reduce the risk from certain faults by disconnecting the supply quickly, but it does not make damaged equipment safe or replace correct installation. Test arrangements should follow site procedures and equipment instructions. On commercial sites, temporary electrical installations must be planned, installed and maintained by competent people in line with applicable regulations.
Avoid the common compatibility mistakes
The most frequent mistakes are usually simple: mixing 110V and 230V equipment, selecting the wrong amperage, overlooking the plug clock position, or buying a connector with the wrong number of poles. Another common problem is assuming a generator outlet will accept any industrial plug of the same colour. Generator connections vary, so verify the outlet specification before fitting leads or adapters.
Adaptors have their place when they are correctly rated, professionally made and used as intended. They should not become a permanent workaround for an unsuitable power setup. If several adaptors are needed to get a tool connected, the better answer is normally the correct lead, outlet or distribution arrangement.
For replacement work, take note of the existing connector markings before removing it. Record voltage, amps, IP rating, pin arrangement and whether the cable enters through a gland or clamp. This makes it far easier to source a like-for-like industrial fitting without delays.
Buy for the work, not just the connection
A dependable temporary power setup is built from compatible parts: correctly rated plugs, sockets, couplers, cable, transformers, distribution equipment and protective devices. Buying each item to the same standard prevents weak points appearing at the connection between them.
For trade buyers keeping site stock, a practical range usually includes common 110V 16A and 32A fittings, suitable extension leads, weather-protected outlets, replacement plugs and selected 230V or three-phase accessories for workshop and machinery requirements. DYNATEX supplies electrical equipment alongside tools, cable and site power essentials, making it easier to source the items needed for repair work and routine replenishment from one place.
Treat every connection as part of the safety system. A correctly specified plug or socket is a small component, but it keeps the rest of the job moving when conditions are wet, deadlines are tight and power cannot be left to chance.
