A hydraulic system can have a sound pump, clean oil and correctly sized hose, yet still perform badly if the hydraulic valves are wrong for the job. A valve that restricts flow, opens at the wrong pressure or has unsuitable ports can cause slow ram movement, overheating, poor machine control and damaged components. For plant repairs, agricultural equipment, workshop presses and mobile machinery, choosing the valve by more than its thread size pays off.
What hydraulic valves do in a system
Hydraulic valves direct, control or limit the movement of pressurised oil. They decide where oil goes, how quickly an actuator moves and how much pressure the circuit is allowed to build. In practical terms, they are the control point between the pump and the work being done by a cylinder, hydraulic motor or attachment.
A simple single-acting ram may only need oil sent one way, with a return route to tank. A double-acting cylinder needs controlled flow in both directions. More involved systems may need to hold a load, divide flow between functions, protect separate sections of the circuit or allow one function to take priority over another.
The correct valve is therefore not simply the one that looks similar to the old part. Its function, flow capacity, pressure setting, connection type and operating method all need to suit the circuit.

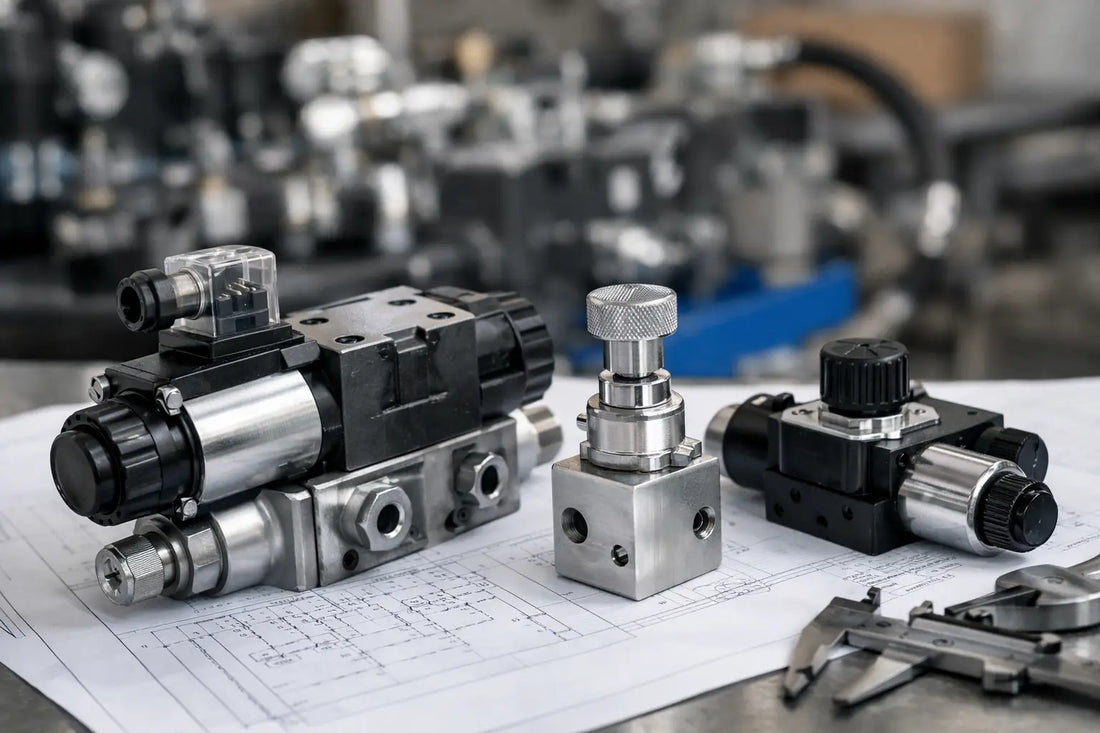

Main types of hydraulic valves
Directional control valves
Directional valves send oil along a chosen path. They are commonly used to extend and retract cylinders, reverse a hydraulic motor or switch between circuits. Their configuration is often described by the number of ports and positions, such as 4/2 or 4/3.
A 4/3 valve has four ports and three spool positions. It is often used on double-acting cylinders, but the centre position matters just as much as the port count. An open-centre spool can return pump flow to tank when the lever is released. A closed-centre arrangement blocks the flow path, which may be required on systems using pressure-compensated pumps. Fitting the wrong centre type can create excessive heat or put unnecessary load on the pump.
Directional valves may be lever operated, cable operated, solenoid operated or hydraulically piloted. Manual lever valves are a practical choice for many trailers, log splitters and compact plant applications. Solenoid valves suit remotely operated systems, provided the available voltage, wiring protection and duty rating are correct.
Pressure control valves
Pressure control valves protect equipment and manage force. The relief valve is the most familiar example. It opens when system pressure reaches its set point, allowing oil to return to tank rather than continuing to build pressure.
A relief setting must be high enough for the machine to do its work but below the safe working limit of the weakest component. That includes hoses, couplings, seals, cylinders and any attachments in the circuit. Raising the setting to cure a weak or slow function is not a repair. It can turn a worn pump, sticking cylinder or blocked filter into a costly failure.
Other pressure valves include reducing valves, sequence valves and counterbalance valves. A reducing valve supplies a lower controlled pressure to part of a circuit. A sequence valve holds back one operation until a set pressure is reached. Counterbalance valves are used where gravity loads must be controlled, such as booms, lifting rams and suspended attachments.
Flow control valves
Flow control valves regulate oil volume and therefore actuator speed. A simple needle valve restricts flow through an adjustable opening. It is useful where a ram needs to move more slowly or where a basic circuit needs speed adjustment.
The limitation is that basic restriction does not compensate for changing load or pump flow. A cylinder may move at one speed unloaded and another when working hard. Pressure-compensated flow controls give steadier speed where accuracy matters, although they are more complex and can introduce a pressure drop.
One-way flow control valves combine a restrictor with a check valve. They restrict movement in one direction while allowing free flow in the other. This is commonly useful when controlled lowering or a slower extension is needed without slowing the return stroke.
Check and load-holding valves
A check valve permits flow in one direction and prevents reverse flow. It may be a small part of the circuit, but it can stop oil draining back through a pump or protect a branch line from reverse pressure.
Pilot-operated check valves and counterbalance valves provide greater control where a cylinder must hold position under load. They should be selected carefully, especially on lifting equipment. Holding a load safely depends on the full design of the system, not just one valve, so follow the machinery manufacturer’s specification where it is available.
Start with the circuit, not the catalogue
Before selecting a replacement or adding a valve, identify the pump flow in litres per minute, maximum working pressure in bar, the oil type, the cylinder or motor requirement and the existing hose and port connections. This information prevents the most common mistake: buying a valve with a suitable thread but inadequate internal flow capacity.
Valve flow ratings are not always directly comparable between manufacturers. One supplier may state a nominal maximum flow, while another gives a flow figure at a specified pressure drop. A compact valve may physically accept a large fitting yet still cause restriction at higher flow. If the valve is undersized, oil heats up as it is forced through a narrow internal passage and machine response can become erratic.
Allow some margin where possible. A valve rated only just above normal pump output may work in light use but become restrictive when oil is cold, engine speed rises or multiple functions are used. At the same time, an oversized valve is not automatically better. It may be more expensive, harder to mount and less controllable at very low flows.
Check ports, threads and mounting carefully
Thread identification is a regular source of expensive ordering errors. BSPP, BSPT, metric and JIC connections may appear similar at a glance but are not interchangeable. BSPP seals on a bonded seal or washer against a flat face. BSPT relies on a tapered thread. JIC fittings seal on a 37-degree flare. Forcing mismatched fittings together can damage threads and create a leak that no amount of thread sealant will cure.
Measure the old fitting where possible and confirm the sealing method, not just the outside diameter. Also check whether the valve ports are labelled P for pressure, T for tank, A and B for work ports, and any additional pilot or drain ports. A tank line that is too small or incorrectly routed can create back pressure and affect how a valve performs.
Mounting matters on working machinery. A heavy monoblock valve unsupported at the end of rigid pipework is vulnerable to vibration. Use a suitable bracket, keep hose runs free from sharp bends and leave enough room to operate the lever or service the valve. On mobile equipment, protect exposed solenoids and cables from mud, impact and water ingress.
When a valve problem may be something else
Not every hydraulic fault is a faulty valve. Slow movement can come from a worn pump, low oil level, blocked suction strainer, collapsed hose lining, leaking cylinder seals or excessive load. A cylinder that creeps down may have internal seal bypass as well as a leaking load-holding valve.
Start with basic checks: inspect oil level and condition, look for external leaks, confirm the pump is turning at the correct speed and check filter service history. Milky oil points to water contamination, while dark or burnt-smelling oil often indicates overheating. Contamination can make a spool stick, damage fine valve clearances and prevent relief valves from reseating properly.
If a relief valve is suspected, test pressure with a correctly rated gauge at the proper test point. Never place hands near a suspected high-pressure leak. Hydraulic oil can penetrate skin and requires urgent medical treatment, even where the wound looks minor. Depressurise the system before removing any valve, hose or fitting.
Fit for reliability, then keep it clean
When replacing hydraulic valves, match the original specification where it is known and treat changes to pressure, spool type or port layout as a circuit modification, not a quick substitution. Use clean caps on open hoses, keep fittings protected before assembly and use the correct seals for the connection type. Dirt introduced during a ten-minute repair can shorten the life of a new valve very quickly.
For trade users and serious DIY repairs, keeping the common valve types, adaptors, hoses and couplings compatible with each other makes future maintenance far easier. DYNATEX can help keep those essential hydraulic parts in one practical order. Choose the valve that suits the actual flow, pressure and function, and the rest of the system has a far better chance of doing its job without drama.
