A valve that leaves a damp patch beneath a pipe, machine or outside tap is rarely a job to ignore. Knowing how to seal a leaking valve starts with finding exactly where the water, air, oil or fuel is escaping. Tightening the nearest nut may stop it for an hour, but it can also damage a fitting, split a washer or conceal a worn valve that needs replacing.
The right repair depends on the valve type, the fluid in the system and the point of failure. A domestic isolation valve and a hydraulic control valve may both leak, but they demand very different seals, pressures and safety precautions. Isolate the supply before starting, depressurise the line where applicable, and never work on a pressurised hydraulic, fuel or compressed-air system.
Find the leak before reaching for sealant
Dry the valve and surrounding pipework thoroughly, then watch it while the system is operating at normal pressure. A piece of kitchen roll held near the suspected area can reveal a small seep without putting fingers close to a moving machine or high-pressure spray. With hydraulic equipment, use cardboard or timber to locate a suspected leak, never your hand. Hydraulic fluid injection injuries need urgent medical treatment.
Most leaks come from one of four places:
- the joint where a threaded fitting enters the valve body;
- the compression nut joining pipe to valve;
- the spindle or stem, usually visible around the handle;
- the valve body, seat or internal mechanism.
How to seal a leaking valve at a threaded joint
Threaded joints are common on brass plumbing valves, irrigation fittings, air-line components and some hydraulic assemblies. The correct method depends on the thread form. Tapered threads seal on their flanks as they tighten. Parallel threads often need a bonded washer, O-ring or sealing face instead. Applying PTFE tape to a parallel thread that relies on a washer will not cure the actual leak.
First isolate and drain the line. Use two spanners where possible: one holds the valve body steady while the other turns the fitting. This prevents twisting a pipe or stressing a valve mounted in a plastic tank, pump or manifold.
Remove the fitting and inspect both threads. Clean away old tape, hardened paste, dirt and corrosion with a wire brush or suitable pick. Check for crossed threads, flattened threads and cracks around the valve inlet. If the fitting has damaged threads, replace it rather than relying on excessive tape.

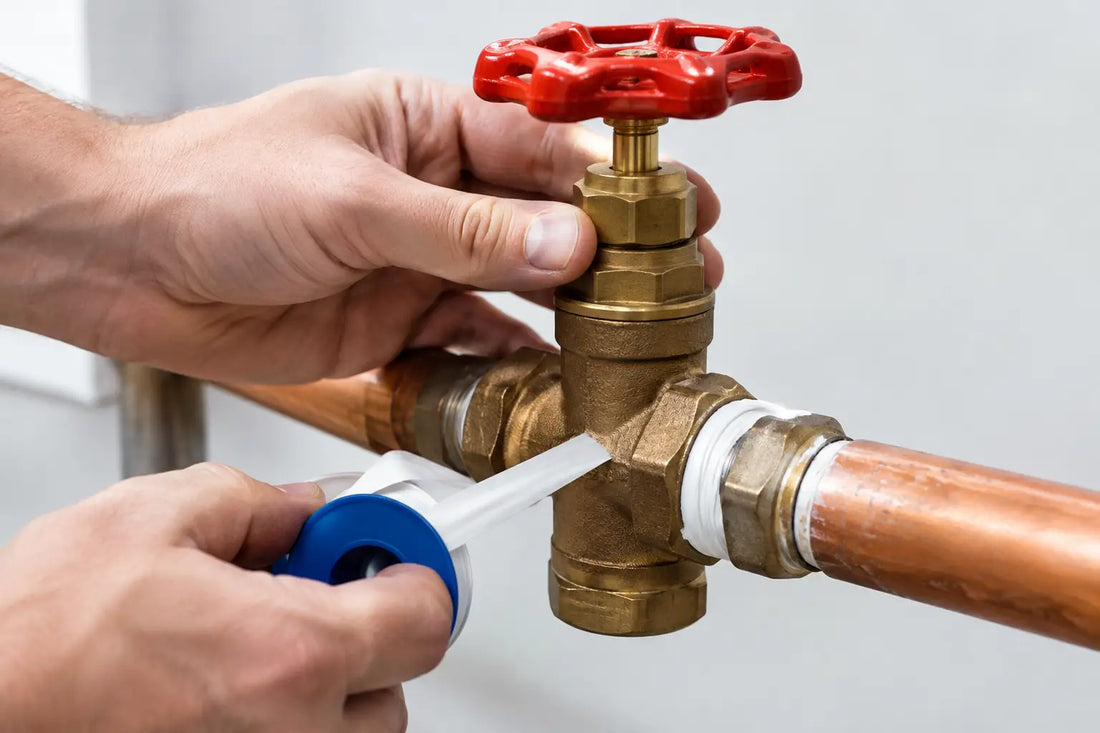

For a tapered male thread, wrap PTFE tape in the direction the fitting tightens. Looking at the end of the male fitting, this is normally clockwise. Start one thread back from the end so loose tape cannot enter the valve or line. Keep the tape smooth and under light tension, using enough turns to cover the thread without building a bulky ridge. For many general plumbing fittings, six to ten wraps is a workable starting point, though thread size and tape thickness vary.
Thread sealant paste can be a better choice for larger fittings or applications exposed to vibration. Select a product rated for the fluid and temperature involved. Potable-water paste, gas-rated compound, diesel-compatible sealant and hydraulic thread sealant are not interchangeable. Avoid using general silicone as a thread sealant. It can squeeze into the line and does not replace a proper mechanical seal.
Refit by hand first. If it will not turn freely for several threads, back it out and start again. Tighten firmly but do not force it past the point where the valve is correctly aligned. Brass threads can crack, while plastic valves and fittings can distort surprisingly easily.
Compression valve joints need a different approach
Compression fittings seal by compressing an olive onto the pipe, not by filling the threads. If water appears at the compression nut, first try a very small adjustment, typically no more than a quarter turn. Over-tightening can deform the olive or crush soft copper pipe.
If the joint still leaks, dismantle it after draining the pipe. Inspect the olive and pipe end for scoring, corrosion or an uneven cut. A damaged olive should be replaced. On older pipework, cutting back to clean pipe and fitting a new olive may be the most reliable repair. A small amount of jointing compound formulated for compression fittings can help during assembly, but it is not a substitute for a sound olive and correctly prepared pipe.
Stop a leak from the valve spindle or stem
When a valve leaks only while open, or moisture gathers behind the handle, the spindle packing is the likely cause. This is common on stopcocks, gate valves, hose bib taps and some older service valves. The packing nut sits around the spindle directly below the handle.
With the supply isolated where possible, try tightening the packing nut by a small amount. An eighth to quarter turn is often enough. Open and close the valve several times, then check for seepage. If the handle becomes stiff, you have tightened it too far. Back the nut off slightly rather than forcing the valve, as a seized stem can damage the internal mechanism.
If adjustment does not work, the packing washer, O-ring or gland packing may need replacing. Strip the valve only when you have the correct replacement parts and can fully isolate the system. On an inexpensive tap or service valve, replacing the complete valve is usually quicker and gives a more dependable result. On industrial valves, plant equipment and specialist hydraulic components, a seal kit may be the appropriate repair, provided the valve body and stem are in good condition.
When a washer, cartridge or internal seat has failed
A valve can look dry externally yet still leak through internally. For example, an outside tap may continue dripping from the spout when fully closed, or an isolation valve may allow water through during maintenance. This points to a failed washer, cartridge, disc or valve seat rather than a leaking joint.
Traditional compression taps can often be repaired with a new washer and, if needed, a reseated valve seat. Quarter-turn ceramic valves commonly use a replaceable cartridge. Ball valves that do not shut off cleanly may have worn seats or a damaged ball, but replacement is generally more practical than stripping a low-cost unit.
For hydraulic, pneumatic and fuel systems, use the manufacturer’s specified seals and materials. Nitrile, Viton, EPDM and PTFE have different chemical and temperature resistance. A seal that works in a cold-water tap may swell, harden or fail rapidly in diesel, hot oil or brake fluid.
Test the repair properly
Once reassembled, restore pressure gradually and inspect the valve while it is dry. Check it in both open and closed positions, because a stem leak can appear only when the spindle moves. For water systems, leave a dry tissue beneath the joint for several minutes. For machinery, run the equipment through its normal operating cycle and check again once vibration and temperature have increased.
Do not bury a repaired fitting behind a panel, under a floor or inside a cabinet until you are confident it remains dry. A slow leak can cause more damage than an obvious drip because it goes unnoticed for longer.
Repairs that usually create bigger problems
Tape wrapped around the outside of a pressurised valve is only an emergency measure, not a repair. So is epoxy putty over a corroded body. These products may briefly reduce a seep on a low-pressure drain or garden fitting, but they cannot restore a cracked valve or a failed internal seal.
Avoid mixing random sealants as well. PTFE tape, hemp, paste and silicone used together can prevent fittings from seating correctly and make future repairs harder. Match the sealing method to the fitting, then use clean parts and sensible tightening.
If the valve is heavily corroded, cracked, difficult to operate or installed on a critical supply, replace it rather than taking chances. Keeping the correct washers, olives, thread tape, valve cartridges and replacement valves on the shelf turns a minor leak into a straightforward maintenance job. For trade and serious DIY repairs, DYNATEX provides a practical single source for the plumbing fittings, tools and consumables needed to finish the job properly.
