A damaged site socket can stop work quickly. It can also create a serious shock, fire or equipment-damage risk if it is replaced or connected incorrectly. Searches for “how to wire site socket” often suggest a simple three-core job, but the correct method depends on whether the outlet is part of a 110V reduced-low-voltage system or a 230V installation, the cable type, the protective device and the condition of the enclosure.
For permanent wiring, alterations to site distribution equipment, or any work where the circuit arrangement is unclear, use a competent electrician. The guidance below helps tradespeople and capable maintenance staff identify the right parts, understand the wiring principles and carry out a sensible visual check. It is not a substitute for safe isolation, proper electrical testing and compliance with the current wiring regulations.
Identify the Site Socket and Supply First
On UK building sites, the common yellow industrial socket is normally a 110V 16A or 32A BS EN 60309 outlet. It is generally supplied from a site transformer, commonly centre-tapped to earth, to reduce the risk from electric shock when using portable tools. A blue industrial socket is normally 230V, while red sockets are commonly used for three-phase supplies. Never choose a replacement by colour alone: check the voltage, amperage, pin configuration, IP rating and markings on both the old fitting and the supply equipment.
A site socket may be an outlet mounted on a transformer, a distribution board, a wall box, a cable reel or an extension lead. These are not interchangeable jobs. Replacing a trailing socket on a 110V extension lead is different from wiring a fixed outlet into a distribution board. A fixed installation must have the correct circuit protection, earthing arrangement and test results before it is put back into use.
Check the rating of the tool or equipment being supplied. A 16A socket is suitable for many site tools, but heavier equipment may require a 32A outlet and matching cable. Fitting a higher-rated socket to an undersized cable does not increase capacity. It only increases the chance that the cable overheats before the protective device operates.
Isolate Before You Wire a Site Socket
Do not rely on a switched socket being turned off. Isolate the circuit at its source, lock it off where possible and attach a warning notice so it cannot be re-energised while work is in progress. Prove your voltage tester on a known source, test for dead conductors at the point of work, then prove the tester again. This is the safe isolation sequence expected for electrical work.
Do not work on a live site socket to save time. Temporary site electrics are often subject to damage, wet conditions, unauthorised alterations and poor previous repairs. Treat every conductor as live until it has been correctly isolated and proved dead.
Before disconnecting the old socket, inspect the cable sheath and enclosure. Cracked housings, damaged threads, loose gland nuts, corroded terminals and scorched insulation are reasons to replace more than just the front fitting. If water or dirt has entered the enclosure, find the cause. Simply fitting a new socket onto a compromised cable or box does not make the installation safe.
Select the Correct Socket, Cable and Gland
Use a site-rated industrial fitting from a recognised manufacturer, matched to the environment and supply. For normal outdoor or construction use, an IP44 minimum is common, while IP67 is often the better choice where sockets are exposed to rain, washdown, mud or frequent handling. The socket must match the supply voltage and current rating exactly.
Cable selection depends on current demand, run length, installation method and risk of mechanical damage. Flexible rubber cable such as H07RN-F is widely used for site leads because it is hard-wearing and remains flexible in typical working conditions. The conductor size must be sufficient for the load and voltage drop, not just physically fit the terminals.
The cable gland matters as much as the terminal connection. It must clamp the outer sheath, not the individual cores, and maintain the enclosure's ingress protection. A gland that is too large, too small or tightened onto the cores can allow strain to pull conductors loose. On a trailing lead, fit the cord grip properly so a tug on the cable cannot transfer force to the terminals.

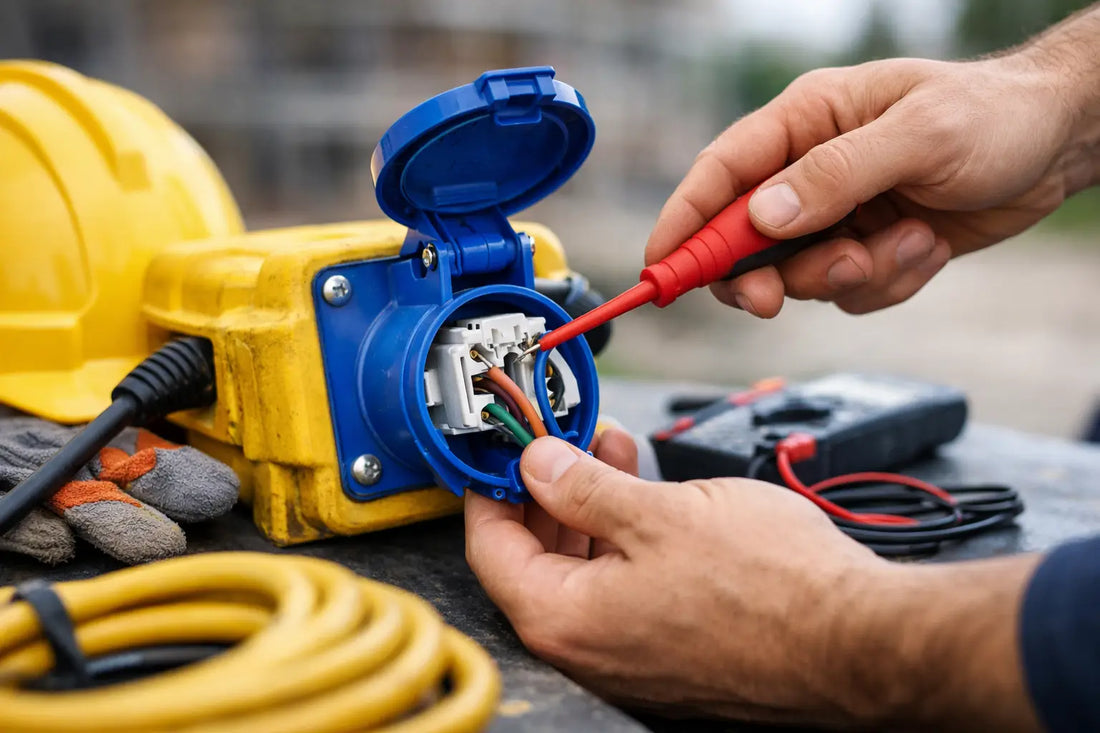

Wiring a 110V or 230V Site Socket
Open the socket carefully and identify the marked terminals before stripping or connecting cable. Most single-phase industrial sockets have terminals marked L, N and an earth symbol. Standard modern UK core colours are brown for live, blue for neutral and green/yellow for protective earth.
For a conventional 230V single-phase socket, connect the brown conductor to L, the blue conductor to N and the green/yellow conductor to the earth terminal. Strip only enough insulation for the conductor to sit fully inside the terminal. No bare copper should be visible outside the clamp, and no insulation should be trapped under it. Tighten terminal screws to the fitting manufacturer's stated torque where this is provided.
A 110V site transformer output requires more care in interpretation. Many 110V systems are centre-tapped to earth, so the two supply conductors are each nominally 55V to earth. The socket terminals may still be labelled L and N, but the installation must follow the transformer and distribution equipment markings. Do not assume a 110V yellow socket can be wired in the same way as a domestic 230V outlet simply because it has three terminals.
Connect the green/yellow protective conductor to the earth terminal in all cases. Earth continuity is critical because it provides a fault path for exposed metalwork and allows protective devices to operate correctly. Never cut back the earth core to make a cramped connection easier, and never use earth as a neutral or make an improvised link between terminals.
Once the conductors are connected, check that the cable outer sheath reaches into the enclosure and is secured by the gland or cord grip. Arrange the cores neatly without sharp bends or trapped wires, then refit seals, covers and screws evenly. A cover that will not close without force usually indicates incorrect cable preparation, poor core routing or an unsuitable gland.
Common Mistakes That Cause Failures
The most frequent problems are loose terminals, the wrong socket voltage, an earth core left disconnected, and a cable gland gripping individual conductors instead of the outer sheath. Another common error is using a damaged extension lead as if a new socket will cure it. If the cable has cuts, flattened sections, heat damage or exposed copper, replace the lead or have it properly repaired and tested.
Avoid mixing plug and socket ratings. A 32A plug and socket system needs the appropriate cable, protective device and supply capacity. Likewise, do not fit a 230V blue outlet where a 110V reduced-voltage supply is required for portable site tools. The socket colour and keyway are there to prevent dangerous cross-connection.
Testing Is Part of the Job
A socket is not ready because it looks tidy. It needs electrical testing before use. At minimum, a competent person should verify protective-conductor continuity, insulation resistance, polarity where applicable, earth fault loop impedance and operation of any RCD protection. For 110V equipment supplied from a transformer, the test approach must reflect the transformer arrangement and the relevant distribution system.
Plug-in socket testers can highlight some obvious faults on 230V outlets, but they do not replace proper test instruments or prove every aspect of an installation. They are not a safe method for testing an uncertain 110V site supply. On a fixed outlet or distribution circuit, record the test results and label the equipment where required by site procedures.
Keep Temporary Site Electrics Serviceable
Site sockets take hard use. Check leads and outlets before each shift for damaged housings, loose pins, split cable sheaths, missing covers and signs of overheating. Keep connections out of standing water, support leads away from vehicle routes and avoid pulling plugs out by the cable. Where leads cross access routes, use suitable cable protection rather than hoping they will not be run over.
DYNATEX stocks practical site electrical equipment, industrial plugs, sockets, cable and accessories for replacement and maintenance work. Match every component to the voltage, current rating and working environment rather than buying on appearance alone.
When the supply arrangement is known, the fitting is correctly rated and the finished work has been tested, a site socket should provide reliable service without becoming the weak point in the lead or distribution system. If there is any doubt about the circuit, stop there and bring in a qualified electrician - downtime is cheaper than an electrical incident.
