A burst hose on a mini digger, loader or workshop press is rarely just an inconvenience. Lost oil, downtime and the risk of high-pressure injection injury make the repair worth doing properly. This hydraulic hose replacement example shows how to identify a like-for-like hose assembly, fit it safely and check the repair before the machine goes back to work.
Start by making the machine safe
Park on level ground, lower the attachment or implement fully, switch off the engine and remove the key. Hydraulic circuits can retain pressure even after the machine has been stopped, particularly on plant with accumulators or cylinders held under load. Follow the machine manufacturer's pressure-release procedure before touching any hose or coupling.
Wear suitable eye protection and gloves, and keep absorbent material ready for escaped oil. Never use a hand or finger to trace a suspected hydraulic leak. A fine jet can penetrate skin and requires urgent medical treatment, even where the wound appears small.
Clean the area around both hose ends before disconnecting anything. Dirt entering an open port can damage pumps, valves and cylinders, then turn a straightforward hose job into a costly fault. Put caps or clean plugs on open ports and fittings as soon as they are separated.
Hydraulic hose replacement example on a boom ram
Take a common example: a hose feeding the rod end of a mini excavator boom cylinder has rubbed against the boom and started weeping through the outer cover. The old assembly has a female swivel fitting at one end and a bent fitting at the other. It is tempting to measure the outside of the hose, order something close, and get the machine moving. That is where avoidable fitting problems begin.
First, remove the old hose only after confirming its route and orientation. Take clear photographs of the hose path, clamps, abrasion sleeve and the angle of each fitting. Mark each end if there is any chance of confusing it with an adjacent line. The replacement must follow the same path without being pulled tight, twisted or forced around a sharper bend.

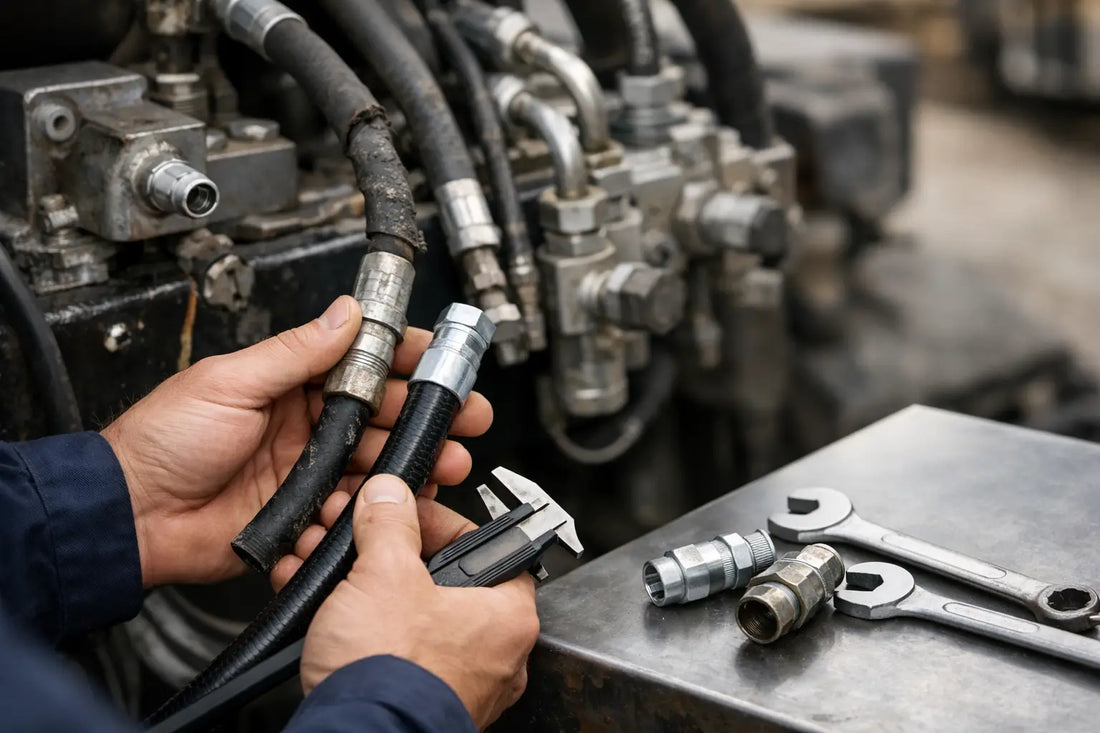

Measure the assembly from sealing face to sealing face, not simply from the end of one nut to the other. This is the hose's overall assembly length. On a hose with angled ends, note the orientation of one fitting relative to the other. If the angles are not aligned correctly, a hose may fit at both ports but sit under twist once tightened.
Next, identify the internal bore. Hydraulic hose is normally described by its inside diameter, often in dash sizes, rather than its outside diameter. A hose with the wrong bore can restrict flow, create heat and slow a cylinder or motor. The old hose markings may state the size, working-pressure rating and applicable standard. If markings are worn, measure carefully and compare the hose with a known specification rather than guessing.
The couplings matter just as much as the hose. Establish the thread type, size and sealing method at each end. BSP, JIC, ORFS and metric fittings can look similar at a glance, but they seal in different ways and are not interchangeable. Check whether the fitting seals on a cone, a flat face, an O-ring or a bonded seal. Do not try to cure a mismatched fitting with excessive thread tape, sealant or extra tightening.
For this boom-ram example, the correct order could be a two-wire hydraulic hose rated above the machine's maximum system pressure, in the required bore and assembly length, with a female swivel JIC fitting at one end and a correctly orientated 90-degree fitting at the other. The exact specification depends on the excavator, the circuit pressure, oil type, operating temperature and routing. The old hose is a useful sample, but its specification should be checked against the machine information where possible.
Choosing a suitable replacement hose
A replacement needs to meet the job, not just reach between two ports. The key details are hose bore, working pressure, temperature capability, fluid compatibility, end fittings, overall length and bend radius. Working pressure is not a target to match loosely. Select an assembly that is rated for at least the system's maximum working pressure, with the appropriate safety margin built into the hose standard and assembly design.
Hose construction also changes with the application. A low-pressure return or suction line is not the same as a high-pressure pump-to-valve hose. Wire-braid and spiral-wire hoses are designed for different pressure ranges and flexing demands. A suction application may need reinforcement that prevents the hose collapsing under vacuum. Using an unsuitable hose because it has the right diameter can lead to premature failure.
Pay attention to the environment around the hose. On plant machinery, abrasion from booms, chassis rails, guards and clamps is a frequent cause of failure. Heat, oil contamination, ultraviolet exposure and repeated movement can shorten service life as well. If routing cannot be improved, use a suitable protective sleeve or guard. Protection should reduce rubbing without trapping the hose so tightly that it cannot move naturally.
Hose and coupling combinations should be compatible with the manufacturer's crimp data. Do not combine fittings and hose from unrelated systems on the assumption that the dimensions look right. A professionally assembled hose should be made using the correct hose, ferrule, fitting and crimp specification. DYNATEX customers sourcing replacement components should still verify the application details before ordering, particularly where machinery has been modified or previous hoses have been replaced before.
Fit the hose without creating a new failure point
Before installation, inspect the replacement assembly for damaged threads, contamination, incorrect fittings or kinks from transport. Compare it directly with the old hose, including fitting angles and length. A small difference can matter where a hose moves with a loader arm or excavator boom.
Route the hose as originally intended, allowing enough slack for full cylinder movement. It should not be stretched at either end of the stroke, trapped under a cover, or resting against a sharp edge. Respect the minimum bend radius stated for the hose. A bend that is too tight weakens the reinforcement and restricts oil flow.
Avoid twisting the hose during tightening. A useful check is to make a straight reference mark along the hose cover before fitting. Once the couplings are tightened, the line should remain straight rather than spiralling around the hose. Twisting reduces hose life and is especially damaging on lines that already flex in service.
Tighten fittings to the correct torque for their type and size. Under-tightening can cause leaks, while over-tightening can damage threads, distort a sealing face or crush an O-ring. Keep mating surfaces clean. If the fitting uses a replaceable seal, fit the correct new seal and lubricate it only where the fitting manufacturer specifies.
Pressure-test and inspect the repair
With the machine clear of people and obstructions, start it at low speed and operate the relevant function slowly. Keep clear of the hose while pressure builds. Inspect the connections visually using a piece of card or clean paper to detect a fine leak, never bare skin.
Cycle the cylinder or hydraulic function through its full range several times. Watch the hose at full extension, full retraction and through the working movement. It should not pull tight, rub excessively, kink or contact hot surfaces. Recheck clamps and guards once the hose has settled into its natural position.
After the machine has run, check the hydraulic oil level and top up with the correct grade if needed. Clean off any spilled oil, then inspect the repair again after the first working period. A hose that looks fine at idle can reveal a routing or movement issue once the machine is under real load.
When replacement is not a simple like-for-like job
Sometimes the failed hose exposes a bigger issue. Repeated failure in the same place can point to poor routing, a missing clamp, excessive movement, an incorrectly specified previous hose or pressure spikes in the circuit. Replacing the hose without correcting the cause may only buy a short period of service.
If the hose has failed near a fitting, has pulled out of a coupling, or the machine's pressure specification is unknown, stop and seek competent hydraulic advice. The same applies to hoses on braking, steering or lifting systems where failure carries a higher risk. A correct assembly costs less than lost operating time, wasted oil and a second repair.
Treat the old hose as evidence, not just scrap. Its markings, fitting style, wear pattern and route tell you what the replacement needs to do - and often why the original failed. That practical check is what turns a quick hose swap into a repair you can rely on.
