A failed hydraulic hose can stop a machine just as quickly as a failed pump, valve or ram. On a digger, loader, press, splitter or workshop machine, the right replacement is not simply a hose that looks similar and screws on. It must handle the system pressure, fluid, temperature, movement and routing without creating another weak point.
For trade repairs and serious DIY maintenance, getting these details right first time saves oil, labour and unnecessary downtime. The best starting point is the existing hose assembly, but only if it was correctly specified and has not been altered during a previous repair.

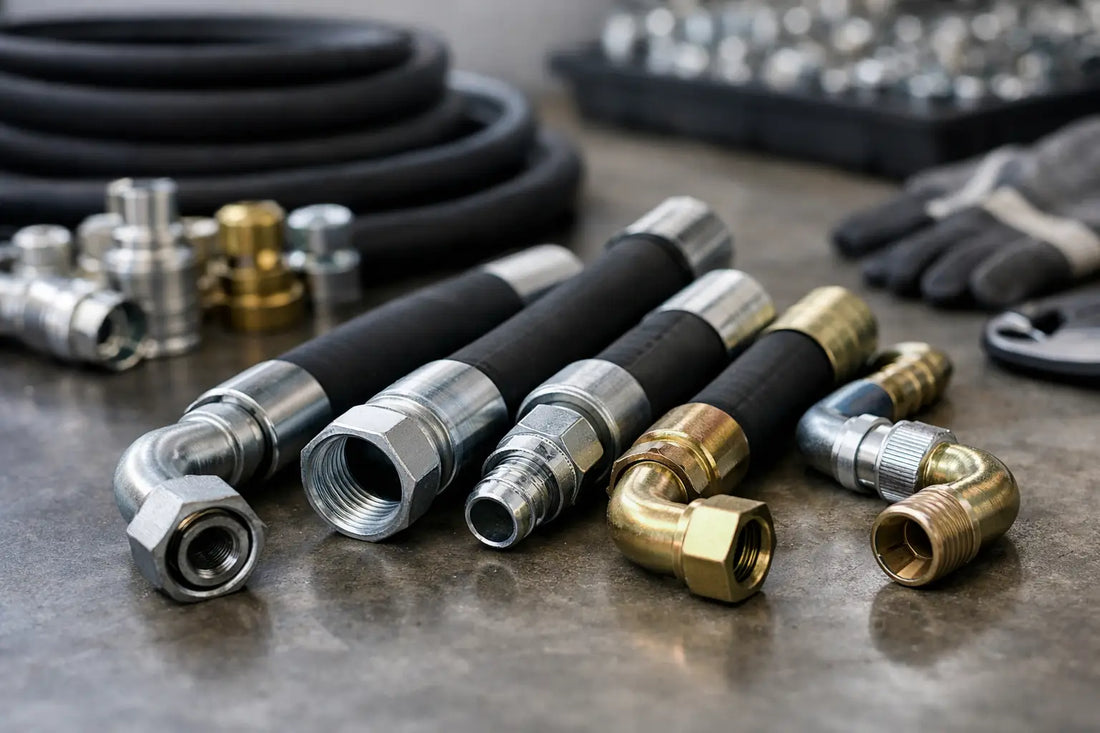

What a Hydraulic Hose Assembly Includes
A working assembly has three main parts: the hose, the end fittings and the method used to join them. Each needs to be compatible with the others. A high-pressure hose with an unsuitable fitting, incorrect ferrule or poor crimp is not a safe assembly.
The hose itself has an inner tube for fluid compatibility, reinforcement layers to contain pressure, and an outer cover to resist abrasion, weather and general site damage. Reinforcement may be textile braid, steel wire braid or steel wire spiral. More reinforcement does not automatically mean a better choice. It can make the hose less flexible, harder to route and unsuitable where a tight bend is required.
Fittings must match both the hose series and the machine connection. Thread size alone is not enough. BSP, JIC, metric, ORFS and other connection types can appear similar, yet seal in different ways. Forcing a near match together can damage threads or create a leak that only shows once pressure is applied.
Choosing the Right Hydraulic Hose
The hose specification should be based on the job, not just its outside diameter. Start by checking the machine manual or the marking printed along the old hose where it remains legible. This often gives the hose type, size, working pressure and relevant standard.
Pressure rating comes first
Select a hose with a working pressure equal to or higher than the machine's maximum system pressure. Do not base the choice on normal operating pressure if the circuit can see pressure spikes. Plant equipment, hydraulic breakers and fast-moving actuators can produce sharp pressure surges that punish an underspecified hose.
The assembly rating is determined by its lowest-rated component. A suitable hose fitted with lower-pressure ends does not provide the pressure capacity marked on the hose. This is why matching hose, ferrule and fitting systems matters.
Never assume a hose is safe because it survived a short test. Fatigue damage develops through repeated pressure cycles, particularly where the hose is constantly flexing or subject to vibration.
Bore size affects machine performance
The internal bore controls fluid flow. A replacement with too small a bore can restrict oil flow, create heat and slow cylinders or hydraulic motors. An oversized bore may be bulkier than needed and harder to route correctly.
Hydraulic hose sizes are commonly expressed in dash sizes, where one dash equals 1/16 inch of internal diameter. A -8 hose, for example, is typically 1/2 inch bore. Check the actual hose specification rather than relying only on the dash number, especially when comparing different standards or older machinery.
If a hose has been lost or is too damaged to identify, measure the fitting and assess the original routing before ordering. A caliper is useful for thread diameter, while a thread gauge helps confirm pitch. These simple checks are more dependable than comparing a fitting by eye.
Fluid, temperature and environment matter
Most standard hydraulic hoses are intended for mineral hydraulic oil, but not every system uses it. Bio-oils, water-glycol fluids, fuels and other specialist media may require a different tube material. Compatibility applies to the inside of the hose and can also affect seals within the fitting.
Temperature needs the same care. Consider fluid temperature, ambient temperature and local heat sources such as exhausts, engines and weld areas. A hose routed close to an exhaust may be operating well beyond the temperature suggested by the general working environment.
External conditions also influence service life. Abrasion from a boom, chassis or neighbouring hose can wear through the cover. A protective sleeve, spiral guard or revised clamp position can be a sensible addition, but protection should not be used to hide an unsuitable route.
Getting the Fittings and Length Right
A replacement hose needs the correct fitting type, angle and orientation at both ends. Straight fittings are straightforward, but 45-degree and 90-degree fittings are common where space is restricted. Their position matters. A correctly crimped elbow facing the wrong way can leave the hose twisted when installed.
Measure the existing assembly from sealing face to sealing face, not from the end of one fitting to the other. The required method can vary by fitting style, so use the original hose specification where possible. If the old hose was stretched tight, damaged by rubbing or repeatedly failed at one point, copying its length exactly may repeat the problem.
Allow enough length for machine articulation, vibration and thermal movement. At the same time, avoid excessive slack. A long loop can snag, rub, kink or catch debris. On excavators and loaders, cycle the attachment or boom through its full travel after fitting to confirm there is no pull, pinch point or contact with sharp edges.
Do not interchange fitting brands or hose systems unless the manufacturer confirms compatibility. Similar-looking ferrules and inserts may crimp differently. The correct crimp diameter is set for a particular combination of hose, fitting and machine tooling.
Installation Checks That Prevent Early Failure
Before fitting, isolate the machine, lower attachments safely and release hydraulic pressure in line with the equipment manufacturer's procedure. Hot hydraulic oil and stored pressure can cause severe injury. Never search for a pressurised leak with a hand or finger. A fine jet of oil can penetrate skin and requires urgent medical attention.
Keep open ends clean during assembly. Dirt entering a hydraulic circuit can damage pumps, valves and seals, turning a simple hose repair into a much larger job. Caps and plugs are worthwhile when a hose cannot be fitted immediately.
During installation, make sure the hose is not twisted. A useful visual reference is the printed line along the cover. If that line spirals after installation, the hose has been twisted and will fatigue sooner. Tighten fittings to the correct torque, support the hose where needed and keep it clear of moving parts.
Once the machine is running, inspect from a safe distance at low pressure first. Look for seepage at the sealing points, hose movement against brackets and any stretching as cylinders operate. Retightening a leaking fitting without identifying the cause can damage the seal or thread.
When to Replace a Hydraulic Hose
A visible oil leak is an obvious reason to act, but it is not the only one. Routine checks are especially worthwhile on plant machinery, trailers, workshop presses and equipment used outdoors. Replace hoses showing four common warning signs:
- exposed or broken reinforcement wire;
- deep abrasion, cuts, crushed sections or a flattened bend;
- blistering, cracking, a soft cover or signs of heat damage;
- leaking fittings, loose ends or a hose that has begun to pull from its coupling.
Common Mistakes on Hydraulic Repairs
The most expensive mistake is treating all hydraulic connections as interchangeable. BSPP, BSPT and JIC fittings are regularly confused because their sizes can be close, but their sealing arrangements differ. BSPP generally seals with a bonded seal, washer or cone arrangement, while JIC uses a 37-degree flare. Thread engagement without the correct seal is not a repair.
Another common issue is fitting a higher-pressure hose where flexibility is more important. A stiff spiral hose may meet the pressure requirement but fail early if forced into a route designed for a more flexible braided hose. Conversely, a flexible low-pressure hose is not a substitute for a high-impulse plant application.
Also avoid wrapping a damaged hose with tape and carrying on. Tape may reduce external mess for a short period, but it does not restore reinforcement or contain pressure safely. Replace the assembly and inspect the surrounding route for the reason it failed.
Keep the Details for the Next Repair
Once a replacement is confirmed, record the hose size, length, fitting types, angles and machine location. A clear note or labelled photograph makes future ordering quicker, particularly where several similar hoses run through the same machine. For fleet, workshop or site equipment, keeping a small record of frequently used assemblies can reduce downtime when a hose fails unexpectedly.
DYNATEX customers often source hoses alongside couplings, tools, protective wear and general workshop supplies because repairs rarely stop at one part. The practical approach is to identify the full requirement before the machine is stripped down.
A hydraulic hose is a working safety component, not a generic length of rubber. Match the specification, route it properly and inspect it before the failure becomes a breakdown.
