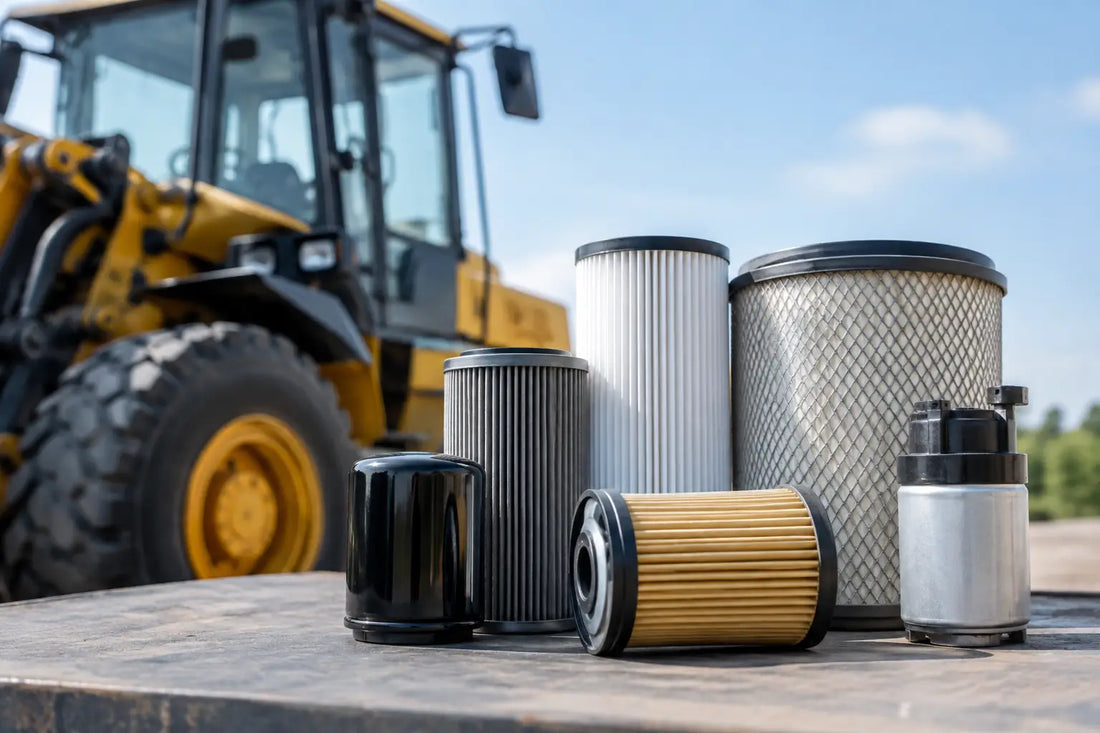

A blocked air filter on a mini digger, a neglected fuel filter on a site dumper or the wrong hydraulic return filter can turn a routine service into downtime. This plant machinery filter guide covers the checks that matter before ordering, so you can keep engines, fuel systems and hydraulic equipment working properly without guessing at fitment.
Filters are relatively low-cost service parts, but they protect expensive components. Clean oil supports bearings and turbochargers. Clean fuel protects injectors and pumps. Clean air reduces engine wear, while hydraulic filtration protects valves, pumps, motors and seals. Selecting the correct filter is not simply a case of matching its outside dimensions.
Why Filter Choice Matters on Working Plant
Plant machinery often works in conditions that put filters under more pressure than ordinary road vehicles. Dust from demolition, fine aggregate, wet ground, long idle periods and repeated short runs can all affect contamination levels and filter life. A machine used occasionally for light property work may have very different needs from one operating every day on a building site.
The filter must match the machine's specification, but the service interval should reflect the job as well. Following the manufacturer's schedule is the right starting point. Where machinery works in high dust, dirty fuel or heavy hydraulic applications, inspection and replacement may be needed sooner. Changing a serviceable filter too early costs money; leaving it too long can cost an injector pump, hydraulic pump or an engine rebuild.
Plant Machinery Filter Guide: Start With Fitment
The safest way to identify a replacement is with the original equipment part number from the existing filter, service book or machinery manual. Machine make, model and engine type are useful, but they are not always enough. A manufacturer may fit different engines, fuel systems or hydraulic arrangements across the same model range.
Check the full reference carefully, including any letters, suffixes and revision numbers. If the existing filter has no readable marking, record the machine model, serial number where available, engine model and the filter's measurements. For spin-on filters, thread size, seal diameter and overall length are all relevant. For cartridges and air elements, note the inner and outer diameter, height, end-cap style and whether a safety element is fitted.
Do not rely on appearance alone. Two filters can look almost identical yet have a different bypass valve setting, filtration rating or seal arrangement. They may screw on correctly but offer the wrong protection once the machine is working.
Cross-references Are Useful, Not a Substitute for Checks
A recognised cross-reference can help you source an equivalent branded or value replacement. It should still be checked against the application and technical details. This is particularly important for hydraulic filters, where micron rating, flow direction and bypass pressure matter as much as physical size.
If you are servicing several machines, write the confirmed part references into a workshop record. Keeping the oil, fuel, air and hydraulic filter numbers for each machine saves time at the next service and helps avoid emergency ordering when a filter is removed.
Know What Each Filter Is Protecting
Engine oil filters
Oil filters remove soot, metal particles and other debris from circulating engine oil. Most plant engines use a spin-on oil filter, although some use a cartridge element inside a reusable housing. The correct anti-drainback valve and bypass setting are important, especially on engines that sit for periods between jobs or operate in cold weather.
Replace the oil filter whenever you change the engine oil unless the machinery manufacturer specifically states otherwise. Before fitting, make sure the old rubber seal has not remained stuck to the engine mounting face. A double seal can cause a serious oil leak as soon as the engine is started.
Air filters and safety elements
Air filtration is critical on excavators, dumpers, compactors, generators and machinery used around dust. The main outer element catches the bulk of contamination. Many machines also use an inner safety element, designed to protect the engine while the outer filter is removed or if it becomes damaged.
Do not clean a paper air filter with compressed air unless the machine manufacturer explicitly permits it. High-pressure air can damage the media or force dirt further into it. Check the housing, lid seal and intake pipework too. A new element cannot compensate for a split intake hose or a poorly seated cover.
Fuel filters and water separators
Modern diesel injection equipment works to fine tolerances. Water and particles in fuel can cause hard starting, poor running, loss of power and costly injector or pump damage. Many machines have a primary fuel filter or water separator and a finer secondary filter nearer the engine.
Drain water traps as part of regular checks, particularly where machinery is stored outside or fuel has been delivered from drums or mobile tanks. When replacing fuel filters, follow the correct priming procedure. Running a diesel system dry can introduce air and leave the machine unable to start until it is properly bled.
Hydraulic filters
Hydraulic systems may use suction strainers, pressure filters, return-line filters and breather filters. Each has a different job. A return filter removes contamination before oil returns to the tank; a breather filter prevents airborne dirt entering as the tank level rises and falls.
Never substitute a hydraulic filter purely because the thread and diameter match. The incorrect micron rating can restrict oil flow or allow excessive contamination through. A pressure filter that does not meet the required rating or collapse strength can fail under load. Check the system specification and fit the correct equivalent.
Match Servicing to Site Conditions
The hour meter is the main reference for scheduled maintenance, but it is not the only one. A machine used in clean, light-duty work may reach its normal interval without concern. A breaker carrier, crusher, screener or plant unit operating in dust needs closer inspection. The same applies to machines exposed to wet, muddy conditions, poor-quality stored fuel or repeated stop-start work.
Watch for restriction indicators where fitted. Air filter restriction gauges and hydraulic filter clogging indicators provide useful information, although they should not replace routine inspection. Reduced power, black exhaust smoke, hydraulic functions becoming slow or noisy, difficult starting and repeated overheating can all point to a filter or contamination issue. These symptoms also have other causes, so inspect rather than replacing parts at random.
Fitting Filters Without Creating a Leak
Cleanliness during installation is just as important as selecting the part. Wipe around the filter head or housing before removal so loose dirt does not enter the system. Keep new filters in their packaging until needed and never leave open hydraulic lines or fuel connections exposed on a dusty site.
For spin-on oil and fuel filters, lightly oil the new seal with the appropriate clean fluid where required. Fit by hand until the seal contacts, then tighten to the manufacturer's stated amount. Overtightening can distort a gasket and make later removal difficult. Cartridge housings need the correct new O-rings, fitted in the intended groove and lubricated where specified.
After servicing, check fluid levels, prime the fuel system if necessary and run the machine at idle. Inspect carefully for leaks before putting it back under load. For hydraulic work, cycle the functions safely and recheck the reservoir level. Mark the service date and hour reading on the machine record.
DYNATEX stocks practical maintenance parts for trade users and serious DIY customers, making it easier to keep commonly serviced machinery ready for the next job.
Keep confirmed filter references, service intervals and a small stock of regularly used items together. When a machine needs attention halfway through a job, having the right filter ready is far more useful than having one that merely looks close.
