A hydraulic hose can look straightforward until it is time to replace one fitting. The question of what size hydraulic fitting you need is not answered by thread diameter alone. The correct replacement must match the thread type, pitch, sealing face, hose bore and pressure duty. Get one of these wrong and you may have a leak, damaged port or a hose assembly that will not safely do the job.
For plant repairs, agricultural machinery, workshop equipment and hydraulic attachments, taking a few careful measurements before ordering saves far more time than trying several fittings at the bench.

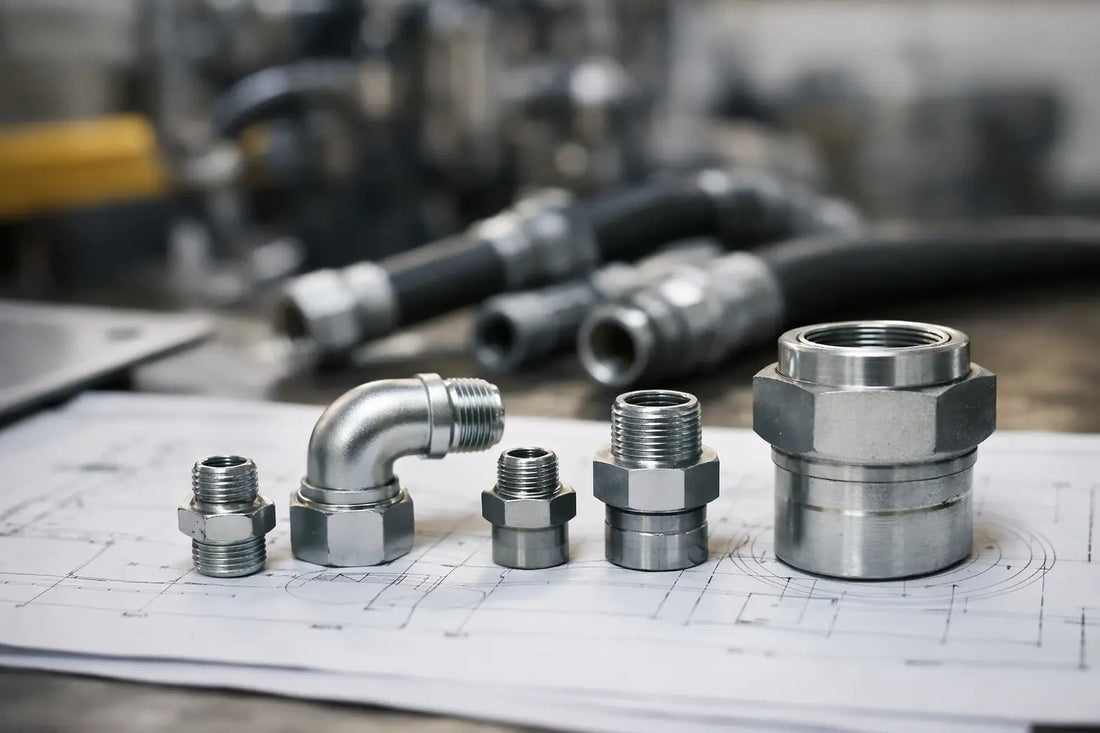

What Size Hydraulic Fitting Is Right for Your Hose?
A hydraulic fitting has two separate sizing jobs. One end connects to the hose, while the other connects to a port, adaptor, valve or cylinder. These are often different sizes.
The hose end must match the hose inside diameter and the fitting series being used. The threaded end must match the connection on the machine. A 3/8 inch bore hose, for example, may be fitted with a 3/8 BSP, 1/2 BSP, JIC or metric threaded connection depending on the equipment. Hose size does not identify the thread.
It is also not safe to assume that two fittings with similar-looking threads will seal together. BSP, JIC, metric, NPT and ORFS fittings can appear close in diameter, but use different thread pitches and sealing methods. Forcing a near match can ruin a port or coupling quickly.
Before selecting a replacement, establish these points:
- the hose inside diameter and outside diameter
- the fitting thread outside diameter or port diameter
- the thread pitch
- the fitting style and sealing face
- whether the fitting is male or female
- the working pressure and hose specification
Start With the Hose Size
Hydraulic hose is generally described by its internal diameter. In many hose systems, sizes are also shown as dash numbers. Each dash size represents one sixteenth of an inch of hose bore. A -4 hose is 1/4 inch, a -6 is 3/8 inch, a -8 is 1/2 inch and a -12 is 3/4 inch.
Do not measure the outside of a worn hose and treat that as the bore size. Hose wall thickness varies by type and pressure rating, so two hoses with the same internal diameter can have different external diameters. This matters when selecting the correct ferrule and fitting series.
For a new hose assembly, check that the hose tail, ferrule and hose are designed to work together. A fitting for one-wire braid hose may not suit two-wire or four-wire hose, even if the nominal bore is identical. The fitting manufacturer’s compatibility information is the safe reference here.
If you are replacing only an adaptor at the end of an existing hose, the hose size may not matter. You still need to identify the thread and seal on both sides of that adaptor.
Measure the Thread Properly
Use vernier callipers to measure across the outside of a male thread. For a female thread, measure the inside diameter at the opening. Then use a thread pitch gauge to check the distance between threads. These two measurements narrow down the likely fitting standard.
A ruler can help as a rough guide, but it is not accurate enough to distinguish similar hydraulic threads. A difference of less than a millimetre can be the difference between a proper fit and a damaged connection.
BSP sizes can cause particular confusion because the name is a nominal pipe size, not the measured thread diameter. For example, a 1/4 BSP male thread measures roughly 13.16 mm across the outside, 3/8 BSP measures about 16.66 mm and 1/2 BSP measures about 20.96 mm. Measuring a thread at 21 mm does not mean you need a 21 mm fitting - it is commonly a 1/2 BSP connection.
Metric fittings are normally identified directly by diameter and pitch, such as M18 x 1.5. The first figure is the nominal thread diameter in millimetres; the second is the pitch. JIC fittings are commonly described by dash size and thread specification, such as -6 JIC, which uses a 9/16-18 thread.
Identify How the Hydraulic Fitting Seals
The sealing method is as important as the thread. Threads may hold the connection together without providing the actual seal.
BSPP, also called BSP parallel, normally seals with a bonded seal, O-ring, cone or washer depending on the fitting design. Its threads are parallel. BSPT is tapered and seals on the thread, commonly with an appropriate thread sealant. They are not interchangeable simply because the nominal BSP size is the same.
JIC fittings use a 37-degree flare. The male cone seats against the female flare, creating the seal when tightened correctly. The thread does not make the seal. A JIC fitting should not be joined to a BSP fitting or a similar-looking 45-degree flare fitting without the correct adaptor.
ORFS fittings use a flat face and an O-ring. They are widely used where high resistance to vibration and leakage is needed. The flat sealing faces must be clean and undamaged. A missing or flattened O-ring means the fitting should not be reused as it is.
Metric hydraulic fittings may use a cutting ring, 24-degree cone, O-ring face or another sealing arrangement. The thread measurement alone will not identify which one you have, so inspect the nose of the fitting and the seat in the port.
Check Male, Female, Swivel and Elbow Styles
A fitting can be the right thread size and still be wrong for the job. Check whether it is male or female, fixed or swivel, straight or elbowed, and whether it needs to face a particular direction when tightened.
A female swivel fitting is useful where the hose must be positioned without twisting. A fixed male elbow may suit a compact port but can make installation difficult if the hose route is tight. On moving plant, poor routing and hose twist can shorten hose life even where all the sizes are technically correct.
Measure the elbow angle if you are replacing a formed connection. Common options include 45 degrees and 90 degrees, but the direction of the bend and the orientation of fittings at each end of the hose also matter.
Do Not Ignore Pressure Rating and Material
Size matching is only part of the selection. The assembly must be rated for the system’s maximum working pressure, including pressure spikes. Low-pressure fittings, hose tails and clamps are not substitutes for properly crimped hydraulic hose fittings.
Match the fitting material to the environment as well. Standard plated steel suits many machinery applications. Stainless steel may be preferable where corrosion, washdown or marine conditions are a concern. For high-temperature systems, confirm that the hose, seals and fitting arrangement are all suitable for the fluid and operating temperature.
Never judge a fitting’s pressure capability by its appearance. Two fittings can have the same thread and external dimensions but very different pressure ratings. If the old hose failed, investigate why before duplicating the original assembly. Abrasion, excessive flexing, contamination, heat damage and incorrect routing are common causes.
A Practical Check Before Ordering
Place the old fitting beside the proposed replacement and compare more than the thread. Check the overall length, nut size, sealing face, hose-tail profile and elbow shape. If a port is available, inspect it with a torch for damaged threads, cracked seats or old seal material.
Photographs can be useful for reference, but a clear photo should show the fitting from the side, the sealing end and a measurement across the thread. Include a ruler or calliper reading in the image. This gives far more useful information than a picture of the hose from a distance.
Do not use PTFE tape on every hydraulic fitting as a matter of habit. It may be appropriate for certain tapered thread connections, but it should not be used on flare, cone, face-seal or O-ring fittings. Loose tape can also enter a hydraulic system and cause contamination problems.
Once fitted, tighten to the specified torque where available, keep the hose free from twist, and test the system carefully at a safe distance. Never search for a hydraulic leak with your hand. High-pressure fluid injection injuries need urgent medical attention.
DYNATEX customers often need a replacement quickly, but a quick repair still needs the right measurements. Keep a note of common hose bores, thread types and fitting styles used across your machines. The next time a hose needs attention, you will be able to order with confidence rather than relying on a close-looking guess.
