A hydraulic leak rarely starts as a puddle. It may begin with a damp patch around a fitting, a dirty stripe down a hose cover, or a machine that has lost a little speed and power. If you are asking, “why does hydraulic hose leak?”, the answer is usually not just that the hose is old. Leaks are often a sign of pressure, heat, routing, fitting choice or assembly problems that need dealing with before they cause downtime or an injury.
Hydraulic oil under pressure can penetrate skin, and a pinhole leak can create a near-invisible high-pressure jet. Never run a hand or finger along a suspected leak. Stop the machine, isolate the system, release pressure in line with the manufacturer’s procedure and inspect it safely using card or wood, not your hand.
Why Does Hydraulic Hose Leak? Start With the Leak Location
Finding where the oil first appears is the quickest way to narrow down the cause. Clean the surrounding area before inspection, then look again after the system has been operated at a safe, controlled pressure. Oil travels, particularly on plant equipment, so the lowest wet point is not always the source.

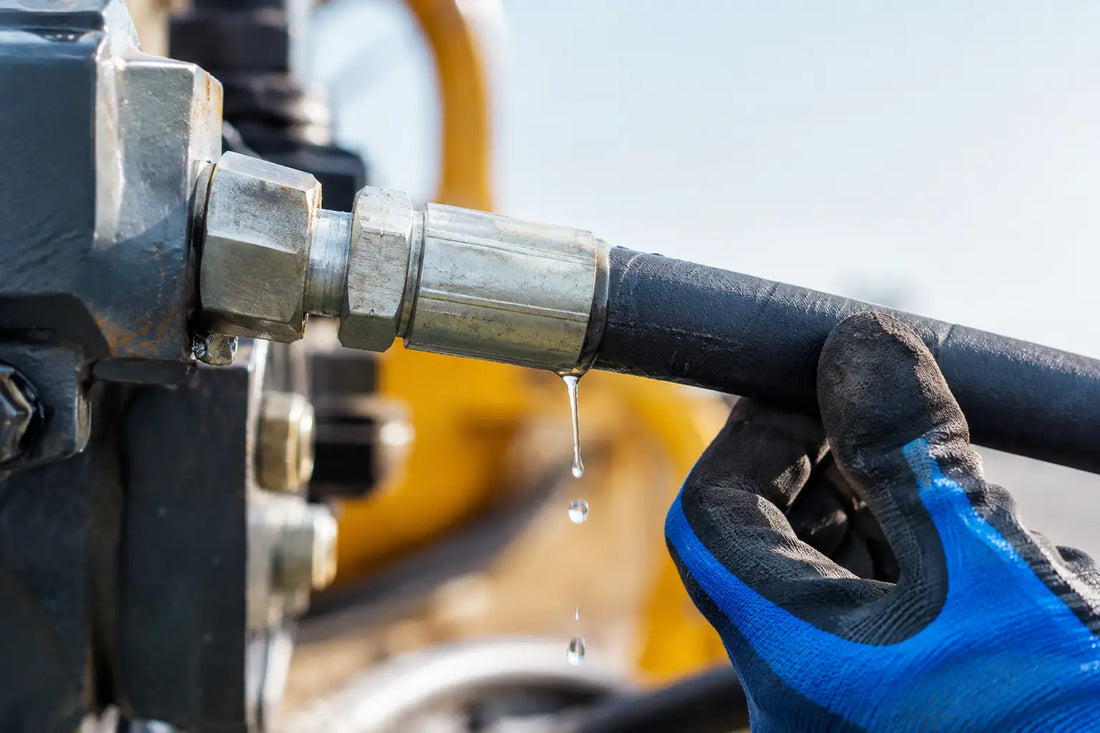

A leak at the hose end is commonly linked to the fitting, thread, seal or crimp. Oil coming through the hose cover usually points to abrasion, ageing, heat damage or internal failure. A leak at a rigid connection may be caused by a damaged sealing face, incorrect adaptor, over-tightening or a fitting that has worked loose through vibration.
Do not assume a weeping connection only needs tightening. Some hydraulic fittings seal on a cone, face seal, bonded seal or O-ring rather than on the thread itself. Tightening the fitting harder can damage the sealing surface, distort a flare or split a seal, turning a small repair into a replacement job.
The Main Reasons Hydraulic Hoses Fail
Abrasion has worn through the cover
Hose rubbing against a chassis rail, boom, guard, clamp or another hose is one of the most common failures on mobile plant and machinery. Constant vibration removes the outer cover. Once reinforcement wire is exposed, moisture can cause corrosion and the hose loses strength quickly.
A spiral guard, protective sleeve or better clamping can prevent a repeat failure, but protection is only useful if the hose is routed correctly first. Allow for machine movement and avoid tight contact points at full articulation. A hose that looks clear when parked may still rub when the arm, ram or steering reaches its end of travel.
Excessive heat has hardened the hose
Hydraulic hose is built for a stated temperature range, and both the oil temperature and surrounding air temperature matter. Routing too close to an exhaust, turbocharger, manifold or hot engine component can harden and crack the cover. High oil temperature can also attack the inner tube, causing it to soften, blister or shed particles into the hydraulic system.
If a replacement hose fails in the same area, do not simply fit another of the same type. Check the heat source, fit suitable heat protection where required and investigate why the hydraulic oil is running hot. A blocked cooler, low oil level, incorrect oil grade or a system fault may be the real problem.
Pressure spikes exceed the hose rating
A hose may be rated for the system’s normal working pressure but still fail if it is repeatedly hit by pressure spikes. Fast valve changes, stopping a loaded cylinder abruptly, shock loads and poor accumulator performance can all create short, high-pressure peaks.
Look for burst hose, damage near the fitting or failures that occur during one particular machine movement. The correct hose must suit its working pressure, impulse rating and application. It also needs the right safety margin. A general-purpose hose is not automatically suitable for a high-impulse excavator circuit, a breaker line or other demanding plant use.
The hose has been twisted, kinked or bent too tightly
Hydraulic hose must have enough bend radius to flex without stressing the reinforcement layers. A sharp bend near the ferrule is especially troublesome because that section cannot flex properly. Kinks restrict flow and weaken the hose, while a twisted hose can shorten its service life dramatically under repeated pressure cycles.
Twist is easy to miss after a repair. Marking a straight line along the hose cover before installation makes it clear whether the hose has rotated as the fittings were tightened. Use angled fittings, elbows or a longer hose where they solve the routing problem properly. Forcing a straight-ended hose into an awkward run is false economy.
The fitting, thread or seal is wrong
Hydraulic connections can look similar while using different thread forms and sealing methods. BSP, JIC, ORFS, metric and NPT fittings are not interchangeable simply because they appear to screw together. Mixing them can damage threads or leave a connection that tightens but never seals correctly.
The same applies to seals. A perished O-ring, a flattened bonded seal, or an incompatible seal material can cause a leak after only a short period in service. Check the fitting type, thread size, seat and seal arrangement against the original component or machine specification. If the old fitting has been damaged, do not use it as the only reference.
Poor hose assembly or the wrong coupling series
A hose and coupling must be matched as an approved assembly. The ferrule, insert, hose type and crimp diameter work together. Using a coupling that is not specified for that hose, setting the wrong crimp size, or pushing the hose on without fully seating it can lead to leaks, blown-off fittings and dangerous failure.
This matters especially where a hose has been made up quickly to get a machine working. Measure the required length with the hose in its operating route, identify both end fittings accurately and account for the hose’s pressure rating and intended fluid. A made-to-measure assembly is only dependable when every part is compatible.
Damage Inside the Hose Can Cause External Leaks
Not every hose problem begins on the outside. Contaminated oil, unsuitable hydraulic fluid, chemical exposure and internal tube degradation can weaken the hose from within. A loose inner layer may restrict flow or contaminate valves and pumps before the hose begins to seep or burst.
A swollen or unusually soft cover is also worth investigating. It can indicate oil compatibility issues or contamination from fuel, solvents and cleaning chemicals. Wiping down a leak with an aggressive chemical may make the hose look tidy while accelerating cover damage.
Age matters, but service conditions matter more. A hose used occasionally in a clean workshop can last far longer than one exposed daily to sun, grit, heat, vibration and flexing on site machinery. Replace hoses based on condition and duty, not only on the calendar.
A Safe, Practical Inspection Routine
Before ordering a replacement, inspect the entire assembly and the surrounding installation. A hose may have failed because it was damaged, but it may also have been installed in a way that guarantees the next hose will fail too.
Check for these faults during planned maintenance:
- chafed, cracked, cut, blistered or softened hose covers;
- exposed wire reinforcement, corrosion or bulges;
- oil staining around ferrules, adaptors, seals and valve ports;
- tight bends, twists, unsupported hose runs and poor clamp positions;
- loose fittings, damaged threads and mismatched connection types; and
- signs of heat exposure or hose contact with moving parts.
Choosing the Right Replacement Hose
The quickest route to the right part is to record the hose bore, overall length, working pressure, fitting types and orientations, plus the application. Photographing the hose in position before removal can help confirm routing and fitting angles. Measure from sealing face to sealing face where appropriate, rather than guessing from the old hose’s overall appearance.
For machinery operating outdoors or under hard use, consider the whole assembly: hose specification, coupling type, abrasion protection, clamps and routing. Spending a little more on the correct hose construction or protective sleeve can be cheaper than lost site time, replacement oil and a second repair call-out.
DYNATEX supplies hydraulic hose, couplings and practical workshop essentials for repairs that need doing properly. When identifying components, exact measurements and clear details of the machine application make selection faster and reduce the risk of ordering a near match that does not seal.
A hydraulic hose leak is a warning, not just a mess to clean up. Fix the cause around the hose as well as the hose itself, and the repair is far more likely to stay dry when the machine is back under load.
